STICK SYSTEM
Overview
Stick facade system, made in Rhino and Grasshopper. Uses Schuco catalogue. As input takes lines for transoms and mullions - from revit elements/rhino/autocad. Uses attribute system in rhino to assign Schuco element and stretch it to correct size, trim screwholes and create details in the places of intersection. As output - creates excel sheets, Revit families. All duplicate geometry assigned to one family and placed in Revit model as instances
Technologies Used
- Rhino inside Revit
- Rhino + Grasshopper
- C#

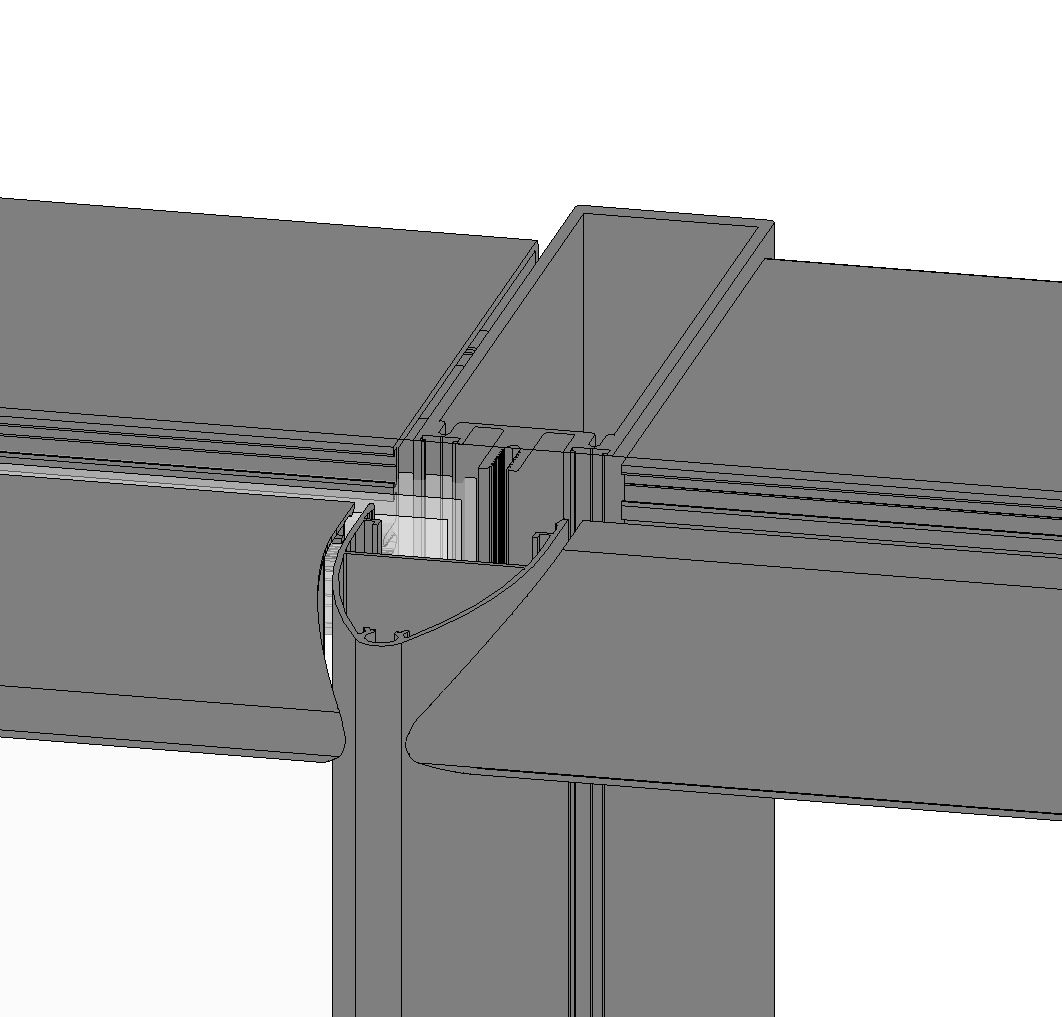

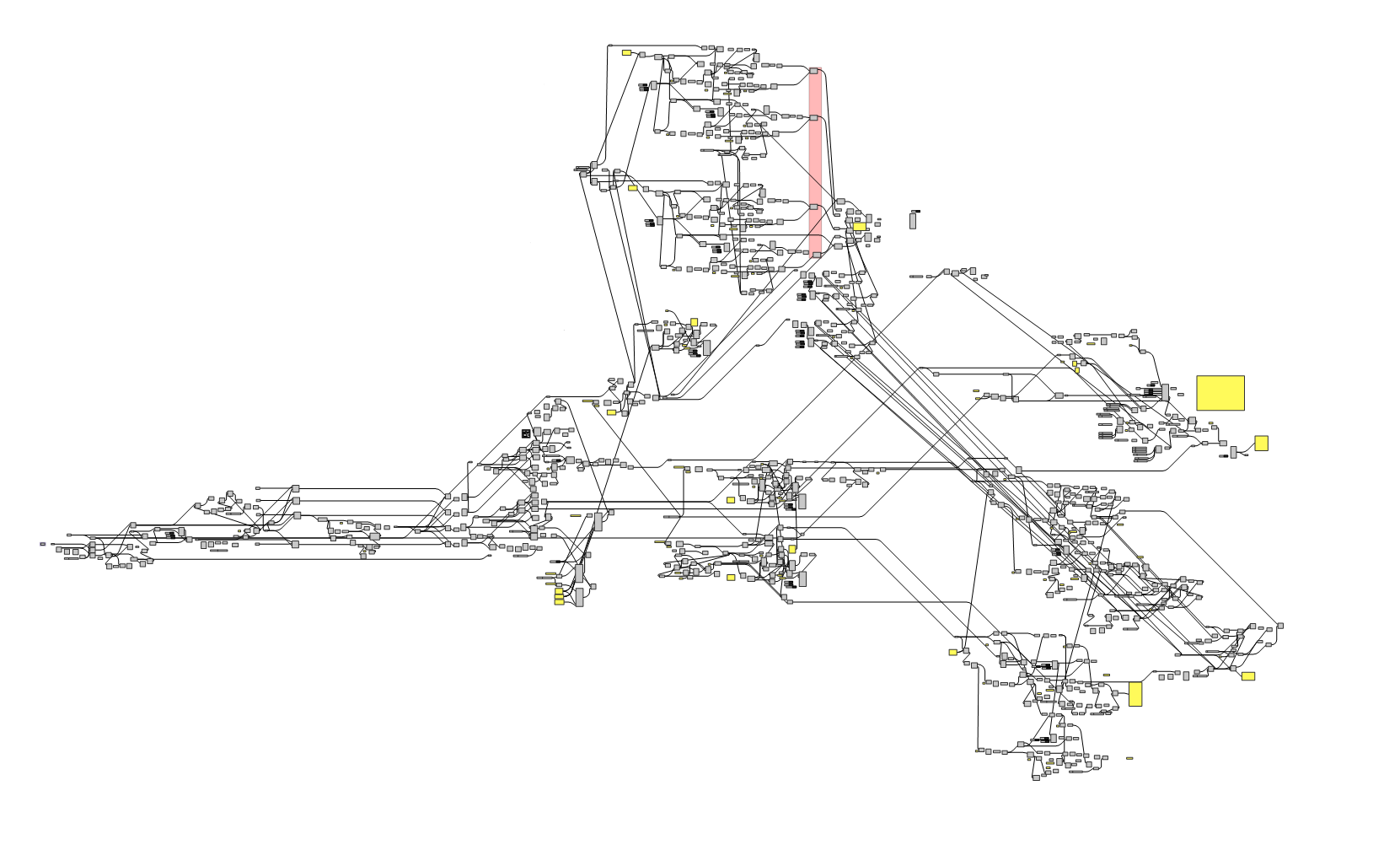

Project Images
