UNITIZE SYSTEM
Overview
Parametric tool for creating any unitize systems or aluminium panels on facades in Revit. Can create corner units with different angles. Inputs for the algorithm is unit sample that we want to scale, and grid we would like to populate. Grid can be extracted from Revit curtain walls, provided from dwg or made in Rhino. As an output you get Revit families with uploaded units, scaled and placed to match provided grid. The algorithm creates new family for each unit of different size. Materials and parameters can be applied. Excel tables with materials can be exported.
Technologies Used
- Rhino + Grasshopper
- Rhino inside Revit
- C#

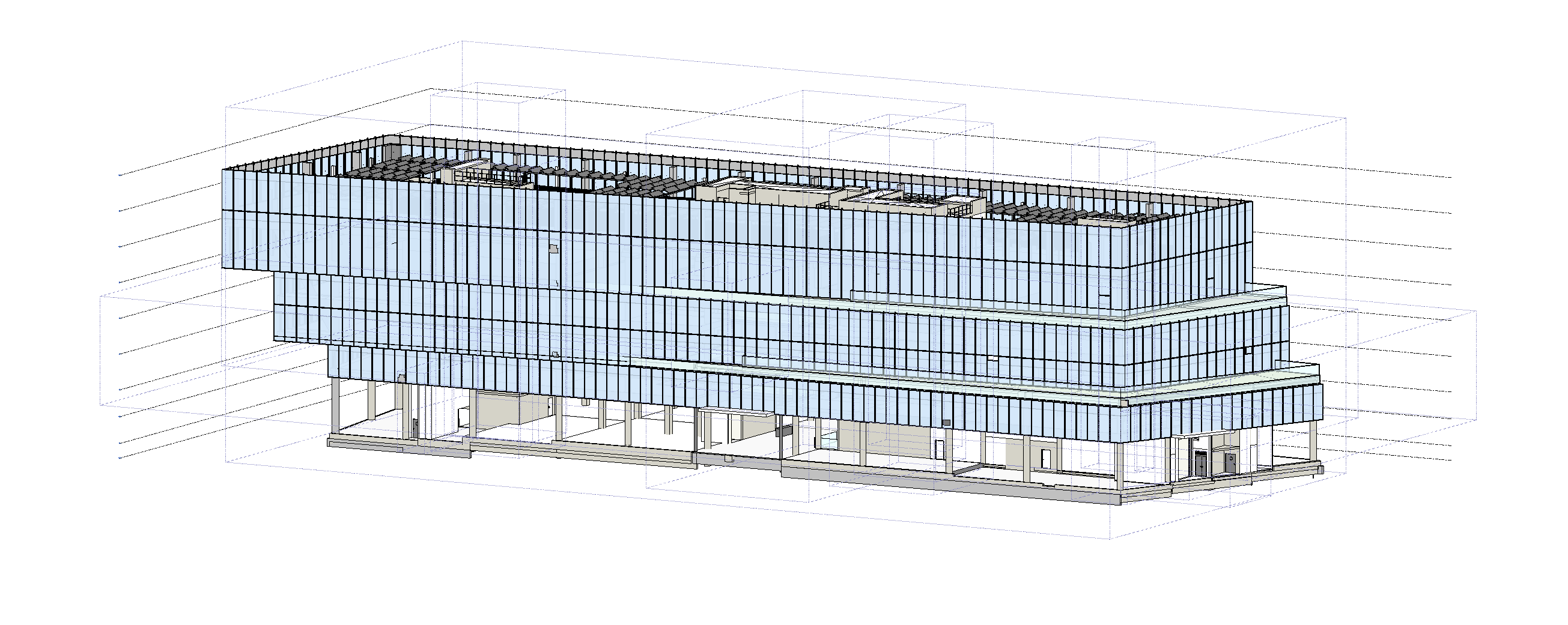

Gallery
◂
▸
